How to Configure Exchange Online Protection on Exchange On-Premise server

How to Set EOP on Exchange On-Premise server

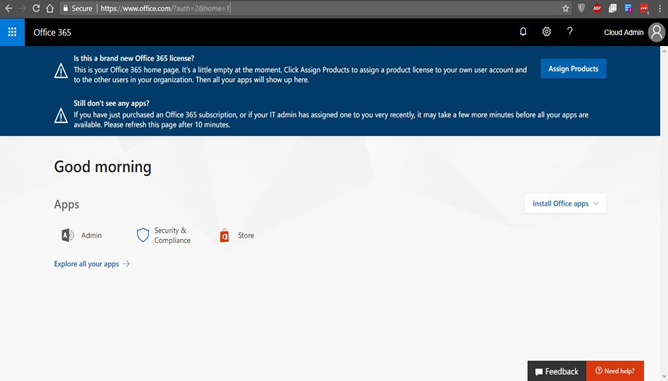

  • Login to Office365 portal(

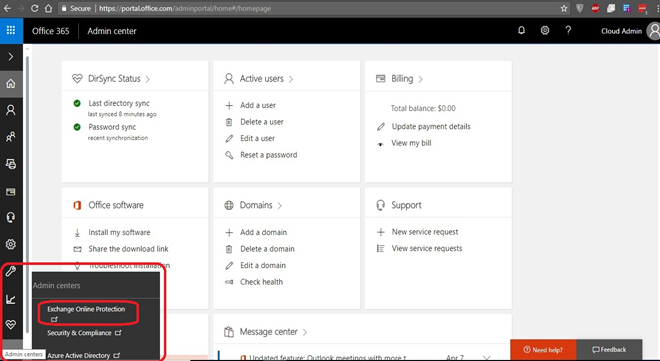

  • Click on Admin centers and Exchange online:

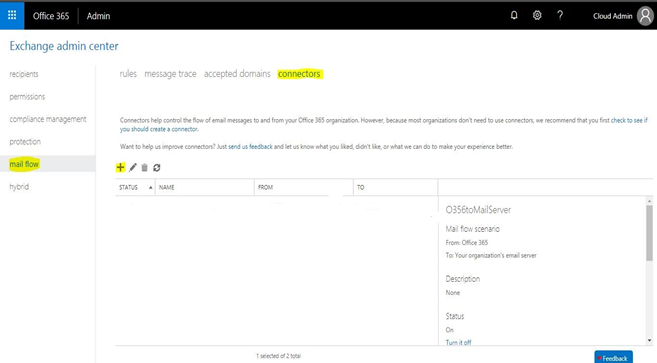

  • Click on “mail flow” button then go to connectors then click on + button:

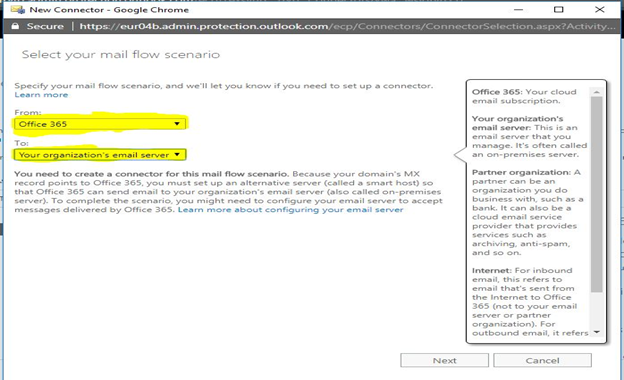

  • In From select “Office365” and in to “Your Organization’s email server”:

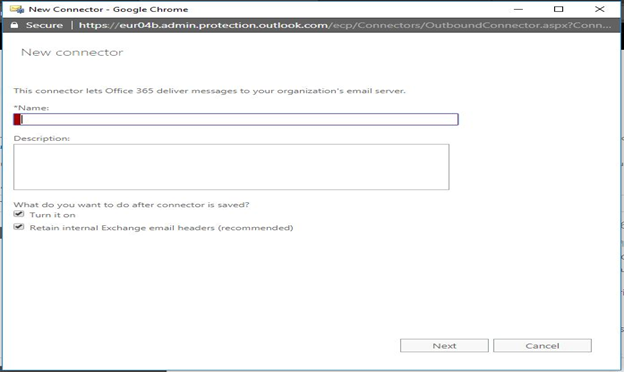

  • Put the Name for the connector:

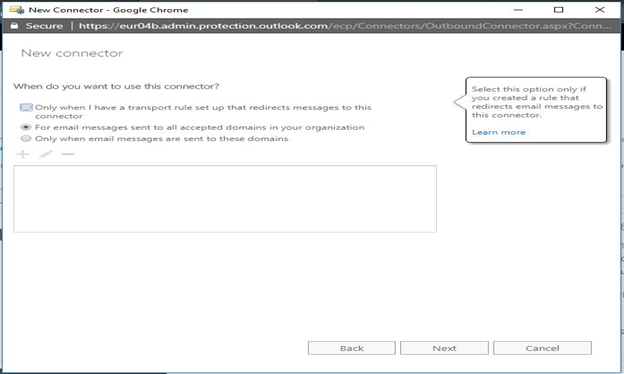

  • Now Select the Middle option:

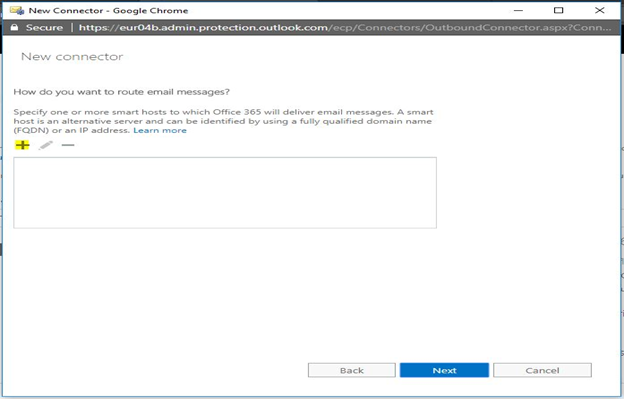

  • In this page click on "+" button:

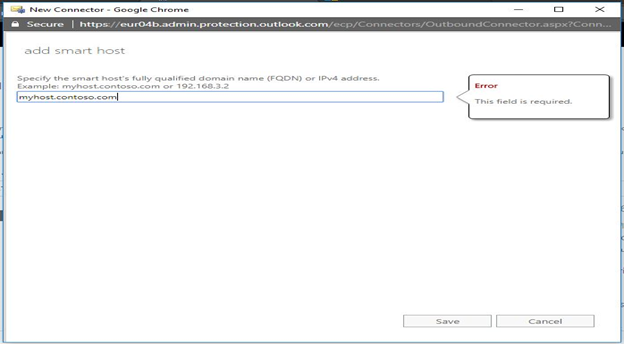

  • Put the FQDN:

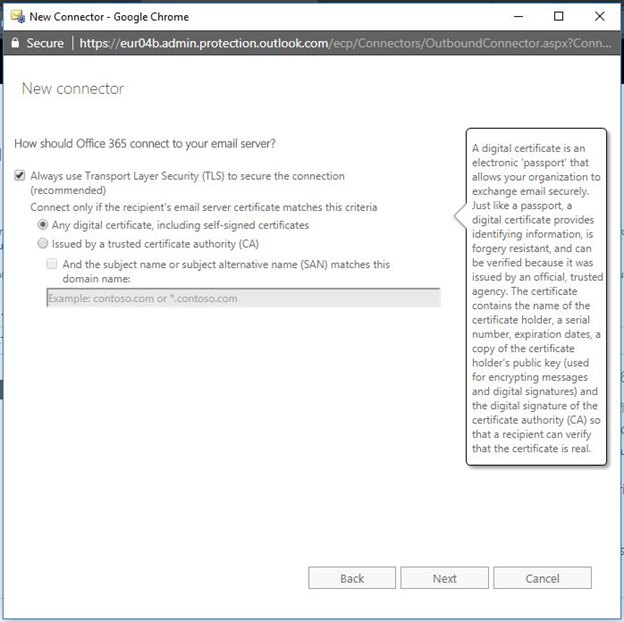

  • At this page select “Any digital certificate…….”:

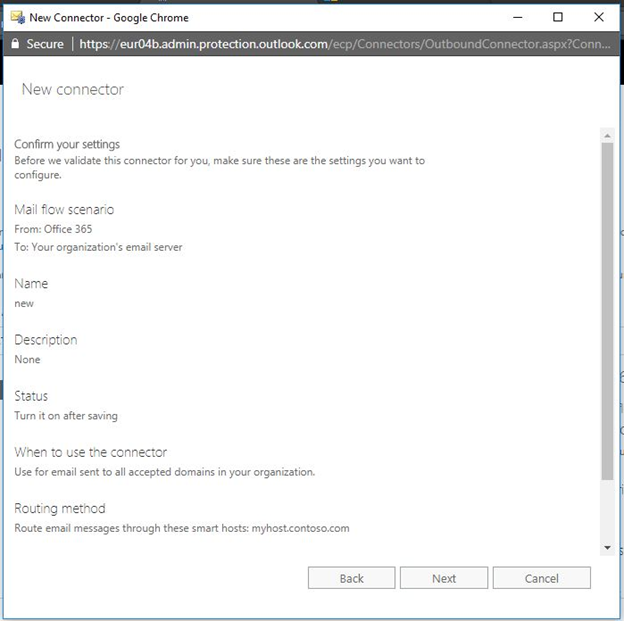

  • Click Next:

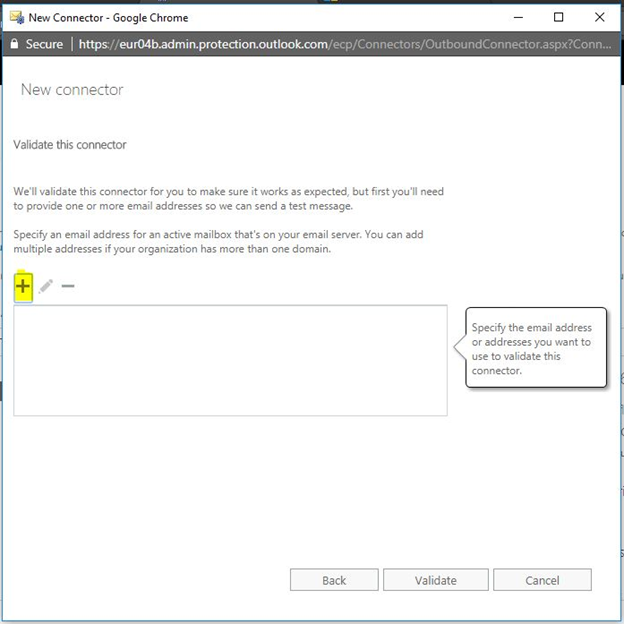

  • Click on "+" button in this page:

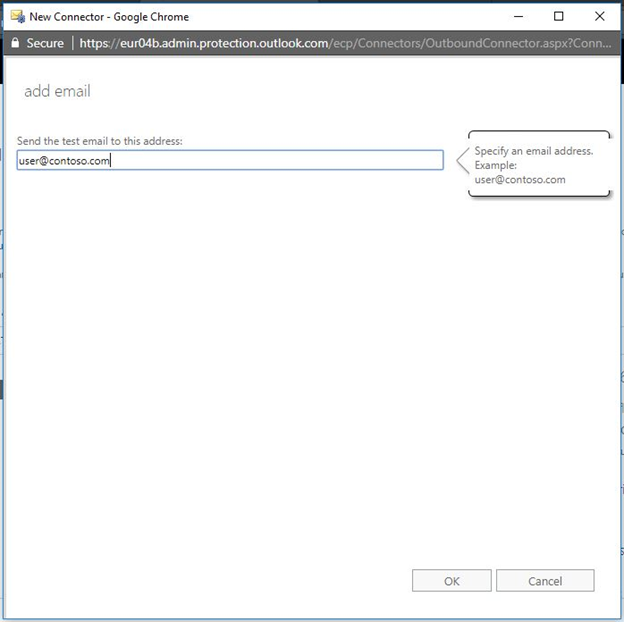

  • Put any email address for test:

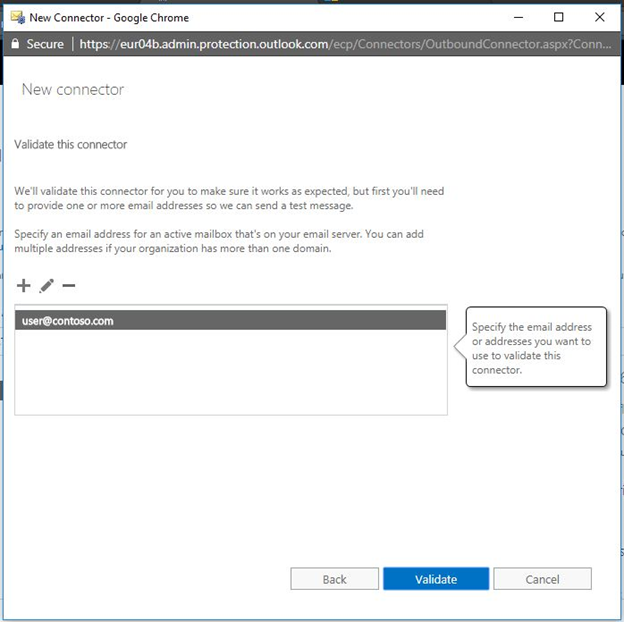

  • Now click on Validate button:
  • Now click on Save button:

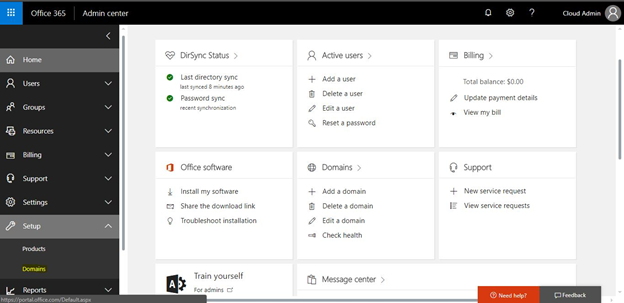

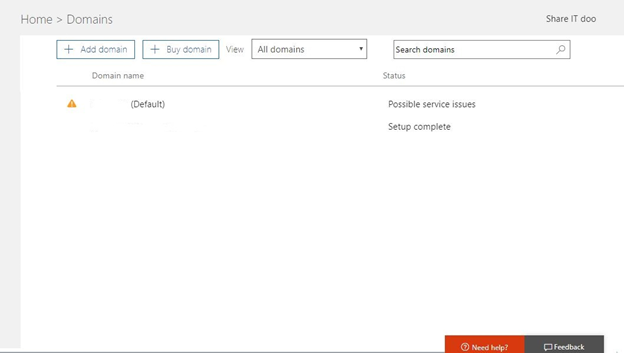

  • Now again navigate to Office365 admin portal and click on Setup---->Domain:
  • Click on the Default domain:

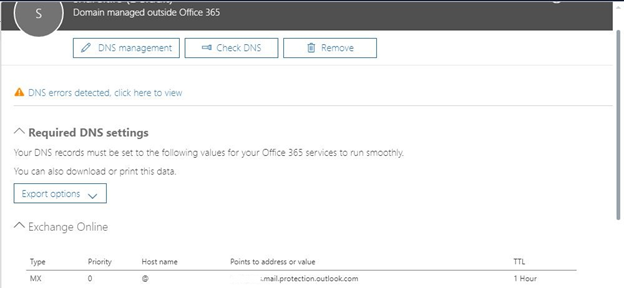

  • Obtain the MX Record and put this in Domain Hosting Website(for example

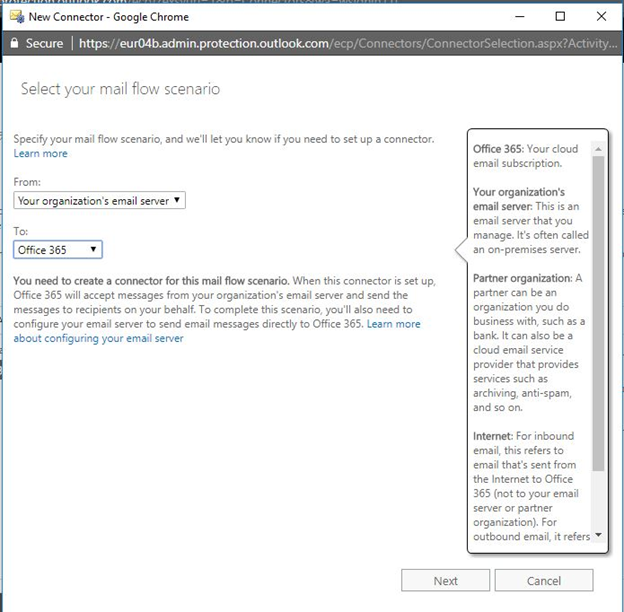

  • Now again go to Exchange Online and in Connectors add new in from field select” Your Organization’s email server” and in to “Office365”:

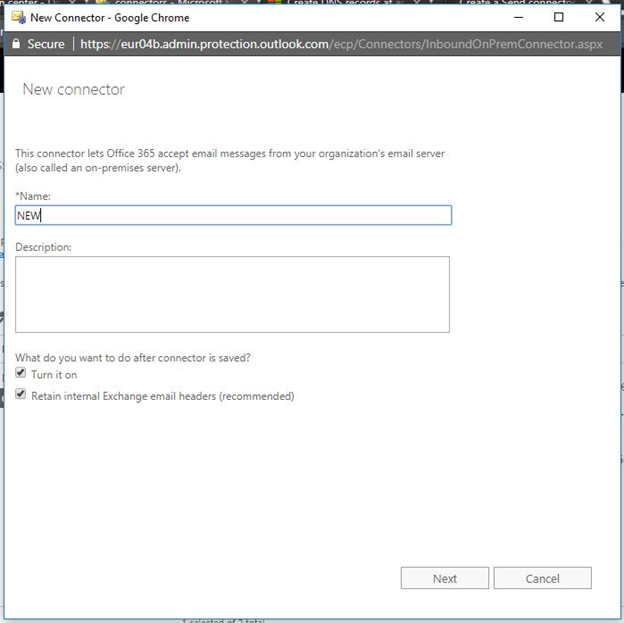

  • Put the Name for the connector:

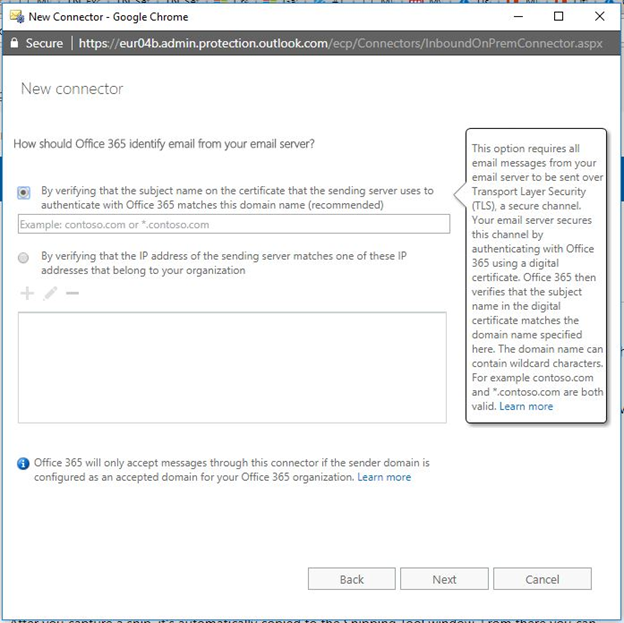

  • Put the Domain name here:

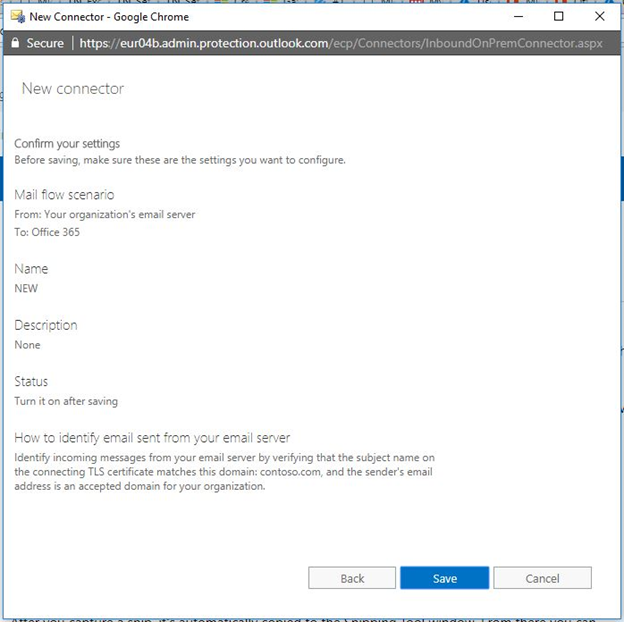

  • Click on Save:

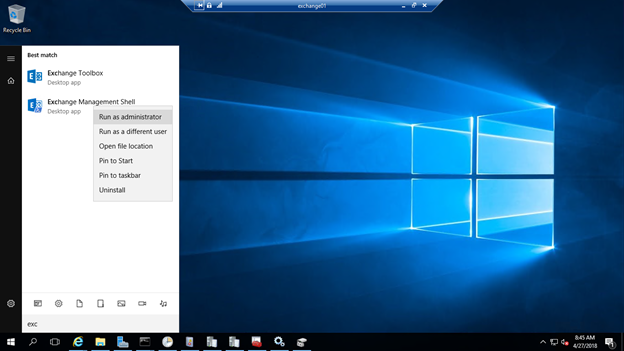

  • Now navigate to your On-Premise Exchange server and go to Exchange Management shell:
  • Run the following Commands:
  • New-SendConnector -Name "My company to Office 365" -AddressSpaces * -CloudServicesMailEnabled $true -Fqdn -RequireTLS $true -DNSRoutingEnabled $false -SmartHosts -TlsAuthLevel  CertificateValidation

       #Put your details in Name"xyz" , FQDN"abc" and replace contoso with you domain

  • New-TransportRule "JunkContentFilteredMail" -HeaderContainsMessageHeader "X-Forefront-Antispam-Report" -HeaderContainsWords "SFV:SPM" -SetSCL 6
