How to Connect to Database server using Workbench

Written May 2018. Microsoft changes these admin screens often, so the screenshots below may not match what you see today. The sequence of steps is usually still correct — if something looks wrong, tell us and we'll update it.
  • Download MySQL Workbench from here “ https://www.mysql.com/products/workbench/ “and install using default settings.
  • Click on Start button and run Workbench:

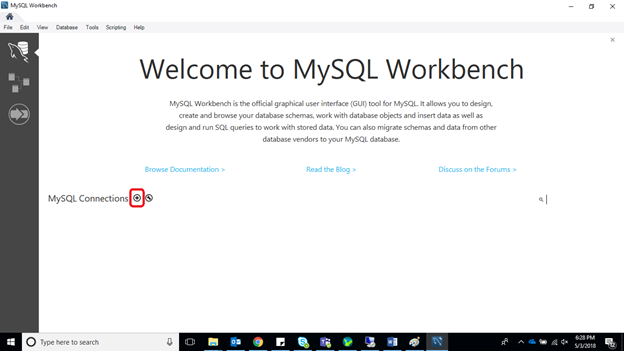

  • Click on “+” to create a connection with your Database:

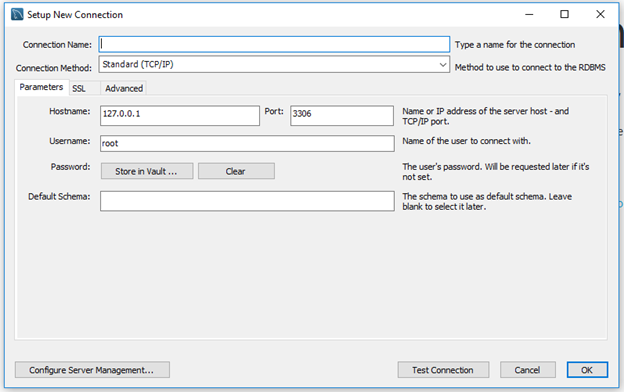

  • Put all relevant details:

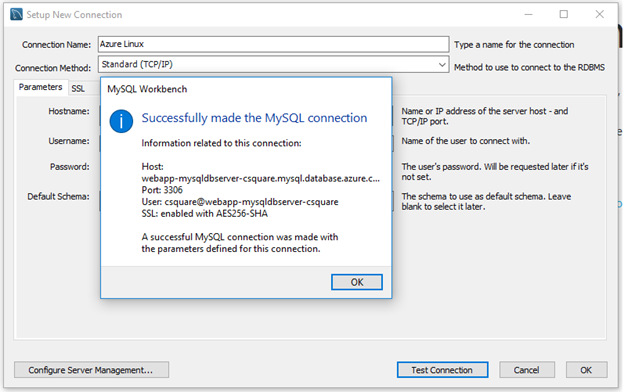

  • Click on Test Connection button it should be successful to connect to your Database:
  • Click on newly created Connection and then on Connect button:

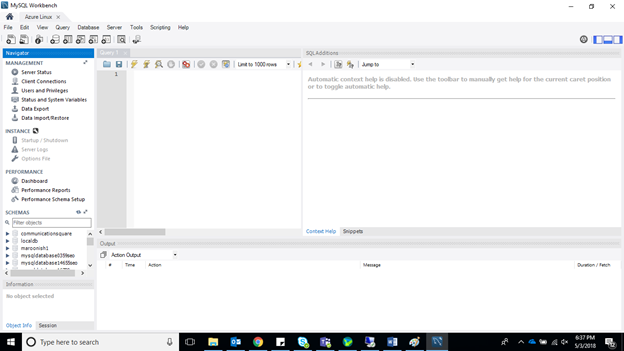

  • Now the connection to database server is established:
